Lacron Pure-24 Side Mount Filter Spares

Waterco Lacron Pure-24 Side Mount Filter Spares

This range includes original replacement components designed specifically for the Lacron Pure-24 sand filter, ensuring compatibility, durability, and reliable operation.

Over time, internal filter components such as laterals, manifolds, seals, and drain assemblies can wear or become damaged, affecting filtration efficiency and system pressure. Replacing these parts with genuine Waterco spares helps restore proper water distribution, improve filtration performance, and reduce the risk of leaks or system strain.

All parts are manufactured to Waterco’s original specifications, making them ideal for routine maintenance, repairs, or refurbishments of Pure-24 side mount filters.

Designed for Waterco Lacron Pure-24 Side Mount Sand Filters

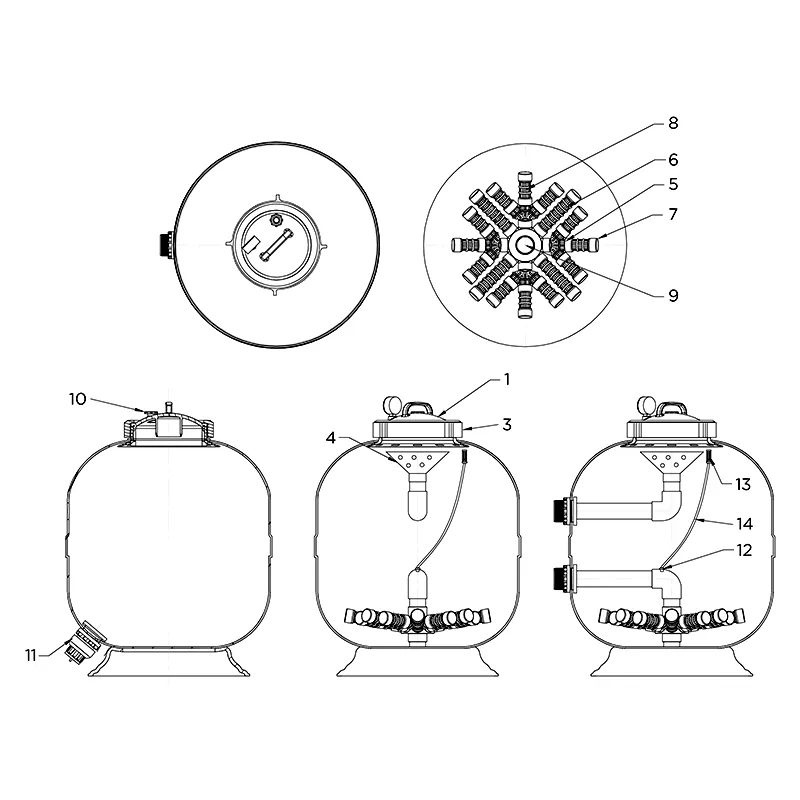

The spare parts listed below are suitable for Waterco Lacron Pure-24 side mount sand filters.

• (1) 6209291 Filter Lid 8" Clear
• (2) 62026 T/L O-Ring
• (3) 62024BLK T/L Lock Ring Black
• (4) W02066 Funnel For Side Mount
• (5) 6209226 Lateral Extension Arm Assembly Short (4 required per filter)
• (6) W02113PP Lateral Waterco 145mm PP (4 required per filter)
• (7) W02117PP Lateral End Cap Nut (16 required per filter)
• (8) W02111PP Lateral Waterco 75mm PP (12 required per filter)
• (9) W02115PP Manifold Waterco 50mm
• (10) 620221 Air Relief Valve New Style Black
• (11) W04058BLK Drain Plug 50mm Complete
• W02268 Gasket 50mm Bulkhead
• W02271BLK Bulkhead Lock Nut 50mm Black
• W02272BLK Bulkhead Threaded Body 50mm Black
• W02158PP Lateral End Cap Screw PP
• W02213 O-Ring 50mm B/U EPDM
• W02267 Drain Plug 50mm O-Ring
• W02269BLK Drain Plug Body 50mm Black
• W02270BLK Drain Plug End Cap 50mm Black
• (12) 85251 Gulfstream Plug
• (13) W02289 Air Relief Tube Screen
• (14) W02549 T/L Moulded Air Bleed 500mm C50

Not Sure Which Part You Need?

If you’re unsure which spare is required for your Waterco Lacron Pure-24 filter, our team can help identify the correct component. Please contact us with your filter details and we’ll be happy to assist.
