Lacron Pure-30 Side Mount Filter Spares

Waterco Lacron Pure-30 Side Mount Filter Spares

Keep your pool filtration system performing at its best with Waterco Lacron Pure-30 Filter Spares, a complete range of genuine replacement parts designed specifically for Lacron Pure-30 side mount sand filters.

These original Waterco spare parts are manufactured to factory specifications, ensuring accurate fitment, dependable sealing, and long-term durability. Replacing worn or damaged internal components such as laterals, manifolds, seals, and drain assemblies helps maintain correct water flow, prevent leaks, and ensure stable filtration pressure.

All components listed below are suitable for Waterco Lacron Pure-30 side mount filters, ensuring correct alignment with the filter vessel, internal distribution system, and pipe connections.

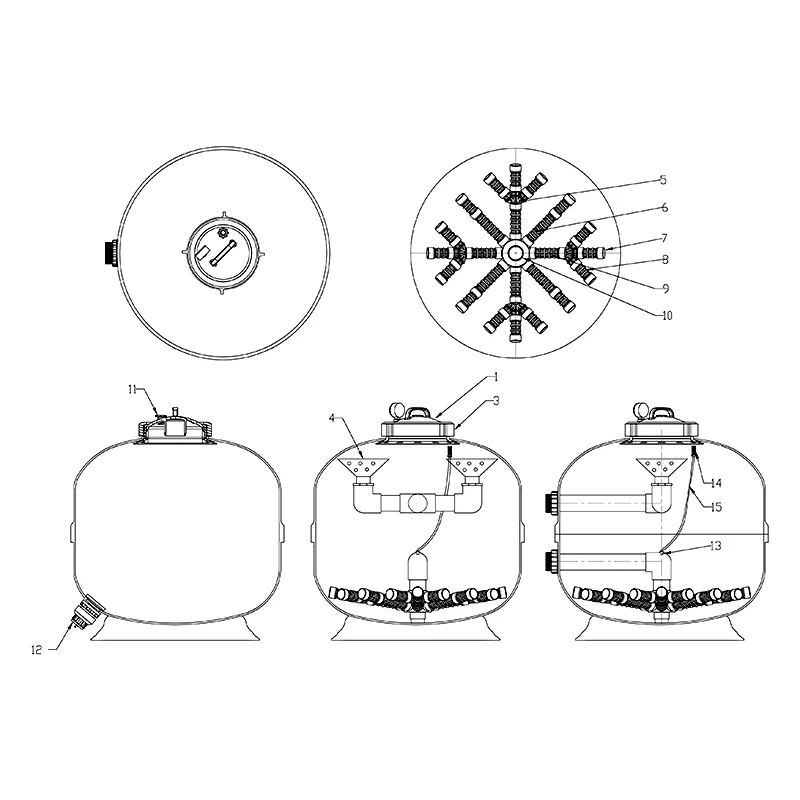

Available Waterco Lacron Pure-30 Filter Spare Parts

• (1) 6209291 Filter Lid 8" Clear
• (2) 62026 T/L O-Ring
• (3) 62024BLK T/L Lock Ring Black
• (4) W02066 Funnel For Side Mount
• (5) 6209226 Lateral Extention Arm Assembly Short (4 required per filter)
• (6) W02113PP Lateral Waterco 145mm PP (4 required per filter)
• (7) W02117PP Lateral End Cap Nut (16 required per filter)
• (8) W02111PP Lateral Waterco 75mm PP (12 required per filter)
• (9) W02112PP Lateral Waterco 110mm PP (4 required per filter)
• (10) W02116PP Manifold Waterco 63mm
• (11) 620221 Air Relief Valve New Style Black
• (12) W04058BLK Drain Plug 50mm Complete
• W02268 Gasket 50mm Bulkhead
• W02271BLK Bulkhead Lock Nut 50mm Black
• W02272BLK Bulkhead Threaded Body 50mm Black
• W02158PP Lateral End Cap Screw PP
• W02213 O-Ring 40mm B/U EPDM
• W02267 Drain Plug 50mm O-Ring
• W02269BLK Drain Plug Body 50mm Black
• W02270BLK Drain Plug End Cap 50mm Black
• (13) 85251 Gulfstream Plug
• (14) W02289 Air Relief Tube Screen
• (15) W02549 T/L Moulded Air Bleed 740mm C75

Need Help Choosing the Correct Waterco Lacron Spare?

If you’re unsure which Waterco Lacron Pure-30 spare part you need, our team can help identify the correct component based on your filter model, age, and internal configuration.
