Micron Side Mount Commercial Filter Spares

A full range of genuine replacement parts for Micron side mount commercial filters, including lids, unions, O-rings, bulkheads, air relief components and fittings to keep your filter operating safely and efficiently.

£2,375.22

*

Free UK Delivery Over £60*
UK Mainland Only (Excludes Highlands)
Excludes Hot Tubs & Swimspas

All Prices include VAT
*Some product exclusions apply; see individual products for any applicable surcharges

The Micron Side Mount Commercial Filter Spares range includes all commonly required replacement components for maintaining and servicing Micron commercial side mount filters. Designed to suit demanding commercial and public pool environments, these parts help ensure long-term performance, safety, and reliability.



The range includes manhole covers, lids, lock rings, handles, half unions, bulkhead fittings, drain plugs, air relief valves, funnels, and O-rings, allowing individual components to be replaced as required without the cost of replacing the complete filter vessel.



All parts are genuine Micron replacement components, manufactured specifically for Micron side mount commercial filters. They are ideal for use in plant rooms by service engineers, contractors, and pool operators, helping to maintain correct operating pressure, prevent leaks, and extend the overall lifespan of the filter system.

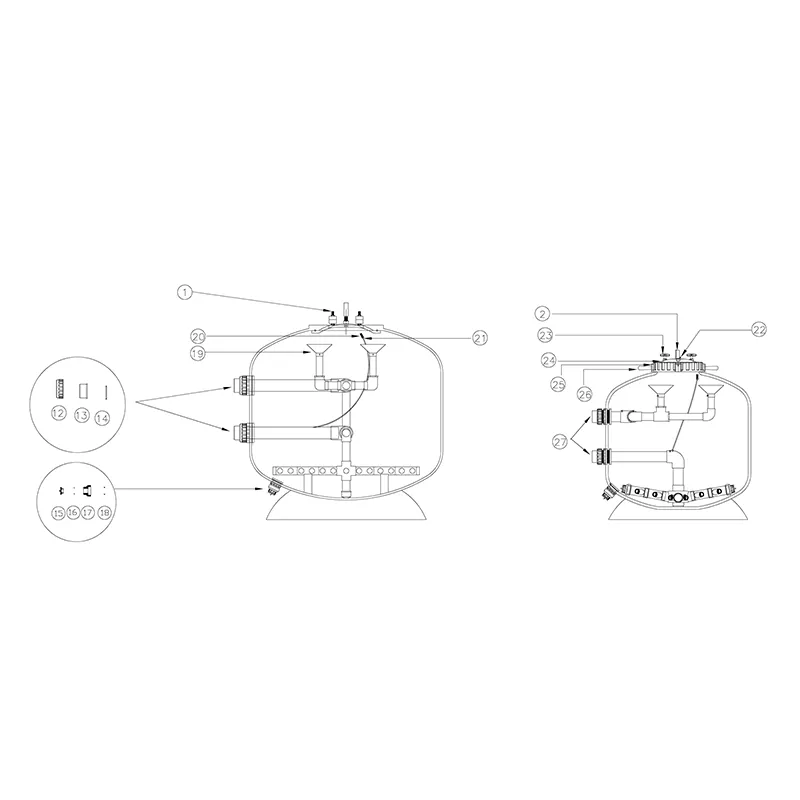

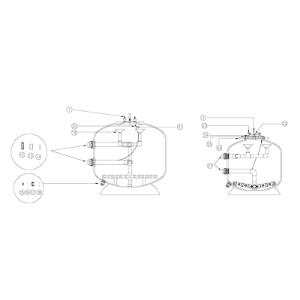

Available Waterco Micron Side Mount Commercial Filter Spare Parts



  • (1) W12720 Man Hole Cover 4 Stud Complete
  • 6209430 Lid Yoke Lacron (2 required)
  • 620266 (W02536) O Ring Manhole Cover Oval 4 Stud
  • (12/13/14) 634080BLK 3" Half Union Black (2 required)
  • (12/13/14) 634080EBLK 90mm Half Union Black
  • (12/13/14) 6340801 110mm Half Union Black (2 required)
  • (14) W02249 O Ring B/U 90mm
  • (14) W02553 O Ring B/U 110mm
  • (15/16/17/18) W04058BLK Drain Plug Complete 40mm
  • (19) W02066 Funnel for Port Size 3" & 4" (90mm & 110mm) (4 required)
  • (20) W02558 Flexible Air Bleed Tube (Per Metre)
  • (20) W02289 Air Relief Tube Screen
  • (21) 85251 Gulfstream Plug (2 required)
  • (22) 620221 Air Relief Valve
  • (23) 6202321 Handle for Lid 12" (2 required)
  • (24) W02630 Lid 12"
  • (25) 620232 Lock Ring 12"
  • (26) 6202321 Screwed Handle for 12" Lock Ring (4 required)
  • (26) 62027 Lid O Ring 12"
  • (27) 63406565BLK Half Union 65mm c/w O Ring (2 required)
  • W02539 Bulkhead Gasket 4"/110mm
  • 12221006 Bulkhead Locknut 4"/110mm
  • 12221007 Bulkhead Threaded Body 4"/110mm



Part No   W02111PP W02112PP W02113PP W02114PP W02117PP W02158PP W12073 W02156 W02157 6200912 W02269BLK W022700BLK


LATERALS

Lateral End Cap Nut

 Lateral End Plug (Male) Hrz Cross Tee Hrz LCT Extension



Hrz LCT End Cap



Extension Arm

Cap Body

Cap Nut
Model Manifold

75mm

 110mm 145mm 200mm

SM1050 75mm Port

 65mm 8 16 - 12 20 - - - - 8 4 4
SM1050 80mm 8 20 10 4 32 4 2 8 4 - - -

SM1200 75mm Port

 65mm 16 4 20 12 28 - - - - 12 4 4
SM1200 - 2 26 8 6 32 4 2

8

 4 - - -
SM1400 - 8 8 36 14 48 4 2 12 4 - - -

SM1600 90mm Port

 - 4 16 42 18 48 4 2 12 4 - - -
SM1600 110mm Port - 10 22 22 38 - 60 - - - - - -
SM1800 - 8 42 22 68 - 76 - - - - - -
SM2000 - 2 52 20 74 - 80 - - - - - -
SM2000 110mm Port - 20 34 78 88 - 96 - - - - - -
SM2000 160mm Port - 64 34 30 88 - 96 - - - - - -





If you are unsure which spare part is required, our team can assist in identifying the correct component using your filter model or existing part reference.

Overview

The Micron Side Mount Commercial Filter Spares range includes all commonly required replacement components for maintaining and servicing Micron commercial side mount filters. Designed to suit demanding commercial and public pool environments, these parts help ensure long-term performance, safety, and reliability.



The range includes manhole covers, lids, lock rings, handles, half unions, bulkhead fittings, drain plugs, air relief valves, funnels, and O-rings, allowing individual components to be replaced as required without the cost of replacing the complete filter vessel.



All parts are genuine Micron replacement components, manufactured specifically for Micron side mount commercial filters. They are ideal for use in plant rooms by service engineers, contractors, and pool operators, helping to maintain correct operating pressure, prevent leaks, and extend the overall lifespan of the filter system.



Available Waterco Micron Side Mount Commercial Filter Spare Parts



  • (1) W12720 Man Hole Cover 4 Stud Complete
  • 6209430 Lid Yoke Lacron (2 required)
  • 620266 (W02536) O Ring Manhole Cover Oval 4 Stud
  • (12/13/14) 634080BLK 3" Half Union Black (2 required)
  • (12/13/14) 634080EBLK 90mm Half Union Black
  • (12/13/14) 6340801 110mm Half Union Black (2 required)
  • (14) W02249 O Ring B/U 90mm
  • (14) W02553 O Ring B/U 110mm
  • (15/16/17/18) W04058BLK Drain Plug Complete 40mm
  • (19) W02066 Funnel for Port Size 3" & 4" (90mm & 110mm) (4 required)
  • (20) W02558 Flexible Air Bleed Tube (Per Metre)
  • (20) W02289 Air Relief Tube Screen
  • (21) 85251 Gulfstream Plug (2 required)
  • (22) 620221 Air Relief Valve
  • (23) 6202321 Handle for Lid 12" (2 required)
  • (24) W02630 Lid 12"
  • (25) 620232 Lock Ring 12"
  • (26) 6202321 Screwed Handle for 12" Lock Ring (4 required)
  • (26) 62027 Lid O Ring 12"
  • (27) 63406565BLK Half Union 65mm c/w O Ring (2 required)
  • W02539 Bulkhead Gasket 4"/110mm
  • 12221006 Bulkhead Locknut 4"/110mm
  • 12221007 Bulkhead Threaded Body 4"/110mm



Part No   W02111PP W02112PP W02113PP W02114PP W02117PP W02158PP W12073 W02156 W02157 6200912 W02269BLK W022700BLK


LATERALS

Lateral End Cap Nut

 Lateral End Plug (Male) Hrz Cross Tee Hrz LCT Extension



Hrz LCT End Cap



Extension Arm

Cap Body

Cap Nut
Model Manifold

75mm

 110mm 145mm 200mm

SM1050 75mm Port

 65mm 8 16 - 12 20 - - - - 8 4 4
SM1050 80mm 8 20 10 4 32 4 2 8 4 - - -

SM1200 75mm Port

 65mm 16 4 20 12 28 - - - - 12 4 4
SM1200 - 2 26 8 6 32 4 2

8

 4 - - -
SM1400 - 8 8 36 14 48 4 2 12 4 - - -

SM1600 90mm Port

 - 4 16 42 18 48 4 2 12 4 - - -
SM1600 110mm Port - 10 22 22 38 - 60 - - - - - -
SM1800 - 8 42 22 68 - 76 - - - - - -
SM2000 - 2 52 20 74 - 80 - - - - - -
SM2000 110mm Port - 20 34 78 88 - 96 - - - - - -
SM2000 160mm Port - 64 34 30 88 - 96 - - - - - -





If you are unsure which spare part is required, our team can assist in identifying the correct component using your filter model or existing part reference.
