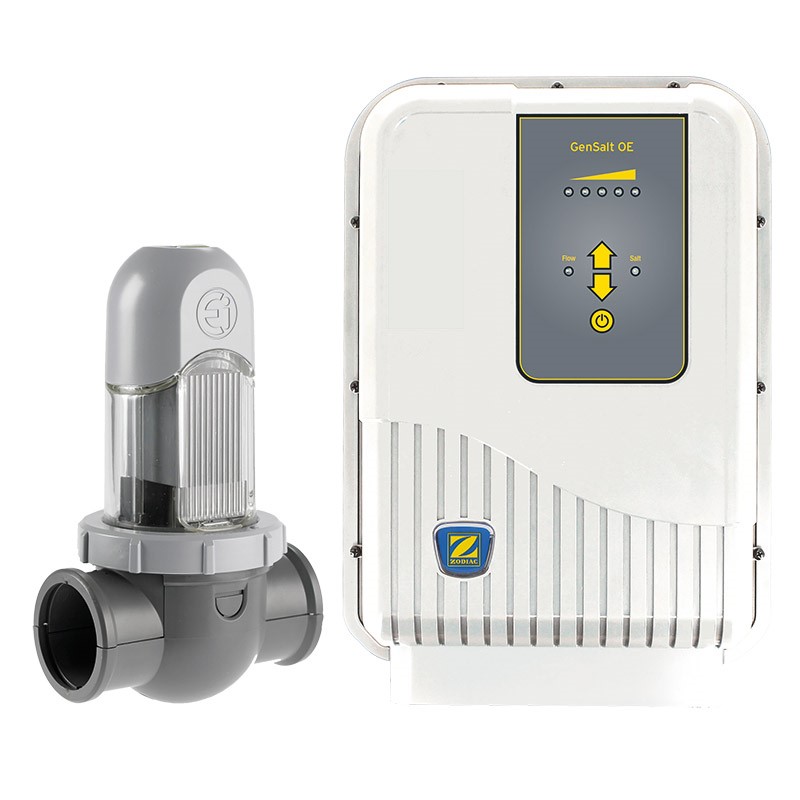

Zodiac GenSalt OE

The Zodiac GenSalt OE is a long-lasting Salt Chlorinator thanks to its high quality titanium electrode. Suitable for all types of installations for pools up to 110 cubic metres.

Sizing assumes pump on 8 hours per day

Free Shipping Zodiac ePartner
£874.00
*

Free UK Delivery Over £60
UK Mainland Only (Excludes Highlands)
Excludes Hot Tubs & Swimspas except Inflatables

All Prices include VAT

Zodiac GenSalt OE salt chlorinators are easy to install and easy to use, offering complete water treatment automatically. Featuring the IPX5 waterproof control unit, the GenSalt OE can be installed in all types of plant rooms in as little as just 10 minutes courtesy of the patented Quick Fix System.

Features:

  • A high quality Titanium electrode making the GenSalt OE one of the longest-lasting chlorinators in its category.
  • Suitable for fast installation even in confined spaces or humid environments.
  • Self-cleaning electrodes via reverse polarity.
  • 'Shutter Mode' with the automatic reduction of chlorine production when the pool cover shutters are closed (adjustable to o% or 20%).
  • Automatic Safety Stop if there is no flow in the cell.
  • IPX5 Waterproof Control Unit.
  • Cell Installation Kit for 50mm and 63mm hoses.
  • Unconditional Guarantee (on the control box and the cell).

** The earth anode is used to remove errent electrical current from the pool system to ensure that the zodiac electronic calibration works more accurately and is highly recommended in all installations.

***The Sacrificial zinc anode protects heaters, pool lights and rails due to galvanic corrosion and is highly recommended in ALL salt chlorinated pools.

TECHNICAL INFORMATION:

          MODELS              GenSalt OE 10                        GenSalt OE 17                                            GenSalt OE 25

Volume of water treated

(temperate climate, filtration 8hr/day)

40m³ 70m³ 110m³
Nominal chlorine production 10 g/h 17 g/h 25 g/h
Power rating 60W 100W 140W
User interface LEDS LEDS LEDS
Operating mode Normal. Shutter Mode 0-20% Normal. Shutter Mode 0-20% Normal. Shutter Mode 0-20%
Clock/Timer Linked to filtration Linked to filtration Linked to filtration
Reverse polarity Yes: 5hr Yes: 5hr Yes: 5hr
Recommended minimum salt level  4 g/L - 3.0 g/L minimum 4 g/L - 3.0 g/L minimum 4 g/L - 3.0 g/L minimum
Safety 'No flow' indicator light 'No flow' indicator light 'No flow' indicator light
Cell position Horizontal or Vertical Horizontal or Vertical Horizontal or Vertical
Compatible pipework DN50, DN63  DN50, DN63  DN50, DN63
Protection rating IPX5 IPX5 IPX5
50 Hz power supply 220-240 VAC  220-240 VAC 220-240 VAC
(mains cable with moulded plug) (mains cable with moulded plug) (mains cable with moulded plug)



WaterLink Spin Unit

FREE Water Testing

All Swim can test your pool and hot tub water free of charge!

Just bring a half litre sample to our Cardiff showroom. We'll use a photometer to analyse the current water balance and then give you a free report detailing any recommended remedial action.

The report details: Bromine/Chlorine, pH, Total Alkalinity, Calcium Hardness, Cyanuric Acid, Iron, Phosphate and Copper.

Zodiac GenSalt OE salt chlorinators are easy to install and easy to use, offering complete water treatment automatically. Featuring the IPX5 waterproof control unit, the GenSalt OE can be installed in all types of plant rooms in as little as just 10 minutes courtesy of the patented Quick Fix System.
