All Swim

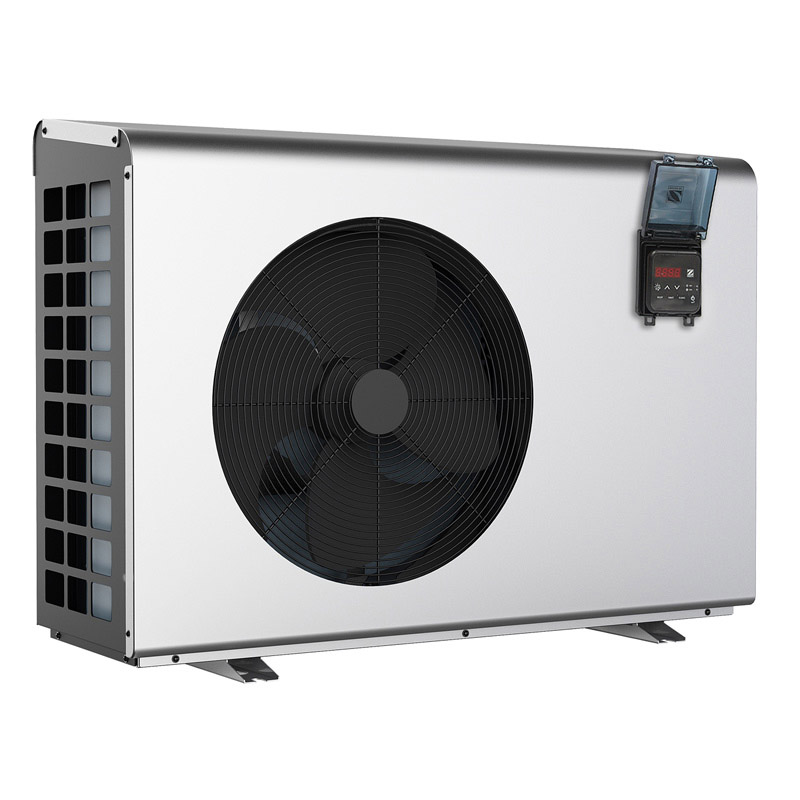

Zodiac HPO Heat Pumps

Zodiac HPO Heat Pumps feature full inverter technology, making them both silent and economical to run.

Easy to install, Zodiac HPO Heat Pumps are highly efficient, with around 80% of the energy used to heat your pool coming from the air.

Complete with 3 year warranty.
Free Shipping

Was:

£3,471.00

Now

£3,306.00

*

Free UK Delivery Over £60
UK Mainland Only (Excludes Highlands)
Excludes Hot Tubs & Swimspas except Inflatables

All Prices include VAT

Zodiac HPO Heat Pumps feature intelligent heating regulation, a Power Mode Selection and full inverter technology plus long-lasting patented titanium heat exchangers. With 6 models from 6kW to 17.7kW* the HPO Heat Pump range is suitable for most pools, up to 145m³ for either heating or cooling.

Both the compressor and fan operate on a 10 speed-range, guaranteeing an adjusted energy consumption and noise level, according to the exact need of power.

Easy to install, Zodiac heat pumps are the ideal solution for heating your pool and using it more often throughout the year while also saving energy.

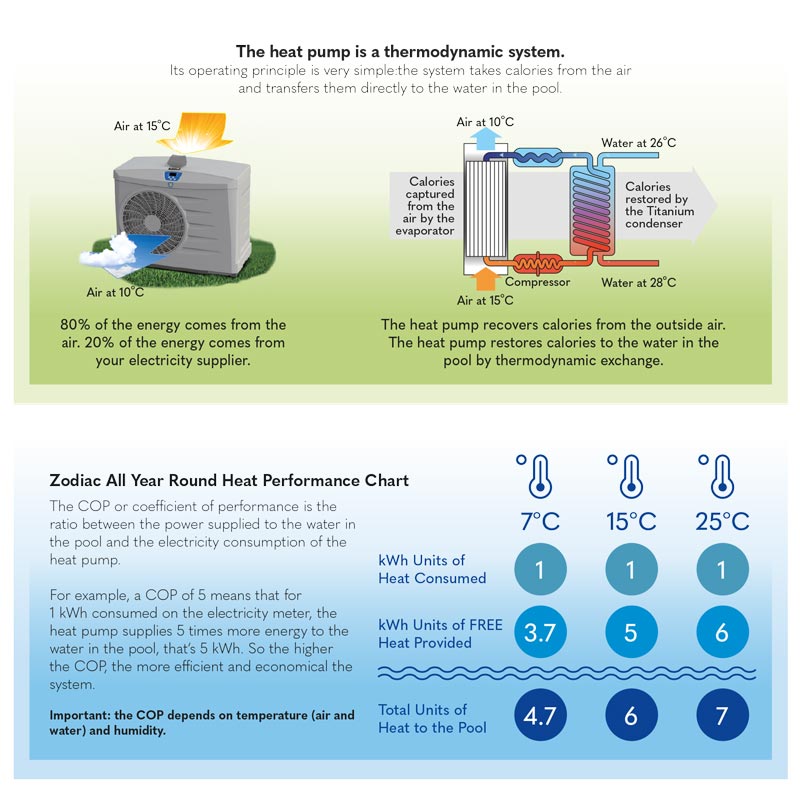

The COP or coefficient of performance is the ratio between the power supplied  to the water in the pool and the electricity consumption of the heat pump. For example, a COP of 5 means that for 1 kWh consumed on the electricity meter, the heat pump supplies 5 times more energy to the water in the pool (that's 5 kWh). So, the higher the COP, the more efficient and economical the system.

Important: the COP depends on temperature (air and water) and humidity.

Features:

  • Full inverter technology: silent and economical.
  • Intelligent heating regulation with power mode selection
  • Wide power range for heating small and large pools
  • Horizontal blowing
  • Epoxy paint galvanised body
  • Removable LCD (LED) display
  • Heating priority mode (filter pump control)
  • Timer mode
  • Automatic defrost
  • Automatic cooling mode (cycle inversion)
  • Titanium water exchanger compatible with salt water treatment
  • Inverter, compressor with rotary vane
  • DC fan, variable speed (Inverter)
  • Suitable for inground, semi-inground and above ground pools
  • Includes Winter Cover and Remote Control Kit as standard
  • 3 Year Warranty

Full Inverter Technology with 3 Operating Modes:

  • Boost - Maximum Power for Rapid Heating
  • Smart - Automatic Power For Rapid Heating
  • Ecosilence - Reduced Power For Greater Energy Saving According To Temperature



HPO-6 HP0-8 HPO-9 HP0-11 HP0-14 HP0-18

Air 28oC/Water 28oC /80% Humidity













Operating Power
(kW @ max-min speed)

9 - 1.9

10.5 - 2.1

13.5 - 2.5

16.5 - 3

19.5 - 3.5

25 - 4.5

Consumed Power
(kW @ max-min speed)

1.6 - 0.2

1.8 - 0.2

2.2 - 0.2

2.8 - 0.20

3.3 - 0.3

4.2 - 0.30

COP @ max-min speed

5.8 - 16

5.8 - 16

5.8 - 16

5.8 - 16

5.8 - 16

5.8 - 16

Air 15oC/Water 26oC/70% Humidity













Operating Power (kW @ max-min speed)

6.3 - 1.9

7.6 - 2.0

9.4 - 2.0

11.2 - 2.5

13.7 - 3.0

17.7 - 4.0

 Consumed Power (kW @ max-min speed)

1.4 - 0.3

1.8 - 0.3

2.1 - 0.3

2.5 - 0.3

3.1 - 0.4

4.0 - 0.5

COP @ max-min speed

4.5 - 8

4.5 - 8

4.5 - 8

4.5 - 8

4.5 - 8

4.5 - 8

Technical Specifications













Recommended Water Flow (m³/hr)

4

5

6

7

8

10

Voltage

220-240v/1/50-60hz

220-240v/1/50-60hz

220-240v/1/50-60hz

220-240v/1/50-60hz

220-240v/1/50-60hz

220-240v/1/50-60hz

Nominal Current Input Amp

4.6

5.9

7.2

9.2

10.5

13.2

Maximum Current Input Amp

6.3

7.6

9.2

10.8

12.3

16.6

Supply Fuse

13 Amp

13 Amp

13 Amp

13 Amp

16 Amp

20 Amp

Acoustic Power (dB/A)
@ max-min speed

65 - 53

67 - 54

71 - 54

71 - 55

73 - 56

73 - 56

Acoustic Pressure at 10m (dB/A)
@ max-min speed

34 - 22

36 - 23

39 - 23

40 - 23

41 - 24

42 - 25

Dimensions in cm (WxDxH)

859 x 641 x 357

985 x 736 x 357

985 x 736 x 357

985 x 736 x 357

1074 x 941 x 395

1074 x 941 x 395


Environmentally Friendly & Cost Saving
